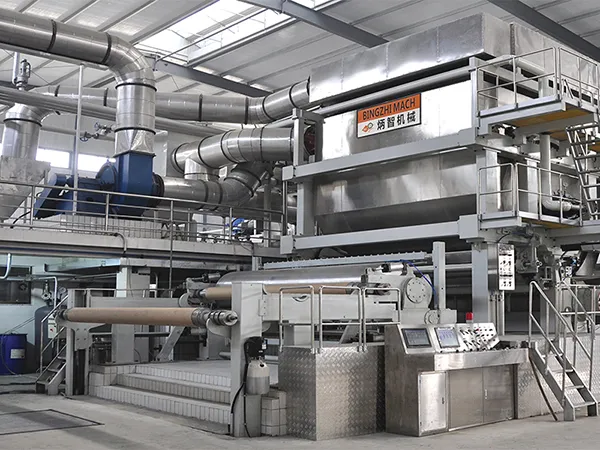

TAD Tissue Machine (Through Air Drying)
The TAD (Through Air Drying) paper machine employs a non-compressive drying technology that utilizes hot and dry air. This innovative approach has fundamentally transformed the drying process of the paper sheet, resulting in rapid and uniform drying while preventing the compaction that typically occurs in conventional methods. Currently, the utilization rate of hot air circulation in TAD technology is relatively low in the market, primarily due to its high energy consumption. However, after extensive research and analysis, our company has successfully developed a multi-stage drying system and process for deep air infusion that integrates distinct management of moist and dry phases within the machine. This innovation not only enhances the efficiency of hot air circulation, but also significantly improves paper thickness, texture, and other key indicators.
| Paper Produced | Hygiene paper, tissue paper, kitchen paper, folded paper hand towel |
| Raw Materials | Wood pulp, bamboo pulp, bagasse, reed pulp, waste paper pulp, etc. |
| Trimmed Width | 1880-3600mm |
| Basis Weight | 13-36g/m² |
| Production Capacity | 15-50t/d |
| Gas Consumption | ≤5.0T (per ton of paper) Example: paper hand towel, 22g/m², crepe ratio 10% |
| Energy Consumption | 920-980kW·h (per ton of paper) Example: paper hand towel, 22g/m², crepe ratio 10% |
| Water Consumption | ≤22m³ Example: paper hand towel, 22g/m², crepe ratio 10% |
| Machine Speed | 300-600m/min |
- The special sealing structure enables the TAD dryer to achieve multi-stage air intake
- The wet/dry separation technology allows for the partitioning of hood sections, which effectively manages hot air circulation with improved utilization and significantly reduced steam consumption
- The hot air process is scientifically calculated to maintain a heat balance, thereby maximizing the use of heat generated by condensate in each section, resulting in a notable reduction in production costs
- Reduction in the consumption of plant fiber raw materials
- High water and oil absorption capability, twice as much as that of hygiene paper
- Increment of the added value of our products by enhancing the softness, strength and texture of the paper
TAD tissue machine is mainly used for the production of high-looseness paper with better texture, as well as strong water and oil absorption properties. Specifically designed for manufacturing hand towels, kitchen paper, and high-grade tissue paper, it is an ideal choice for the production of high-quality paper products.
Standard Configurations: Former, dryer, paper winder, drive, pneumatic control
Optional Configurations
- Pulping equipment: pulper, refiner, desander, pressure screen, etc.
- Pulping control system: electric cabinet, electrical components, frequency conversion, control system
- Pipeline components in the pulping section: pipes, valves, fittings, etc.
- Paper machine auxiliary machinery: approach flow system, vacuum system, DCS control system, auxiliary electrical control
- Pipeline components in the paper making section: pipes, valves, fittings, etc.
- Post-processing equipment: rewinding machine, packaging machine, paper roll processing equipment, tissue paper processing equipment
- Spare parts: guide rollers, vacuum rolls, paper roll shaft, etc.
Our expert team works together with you according to your specific needs.
