Crescent Former Tissue Machine

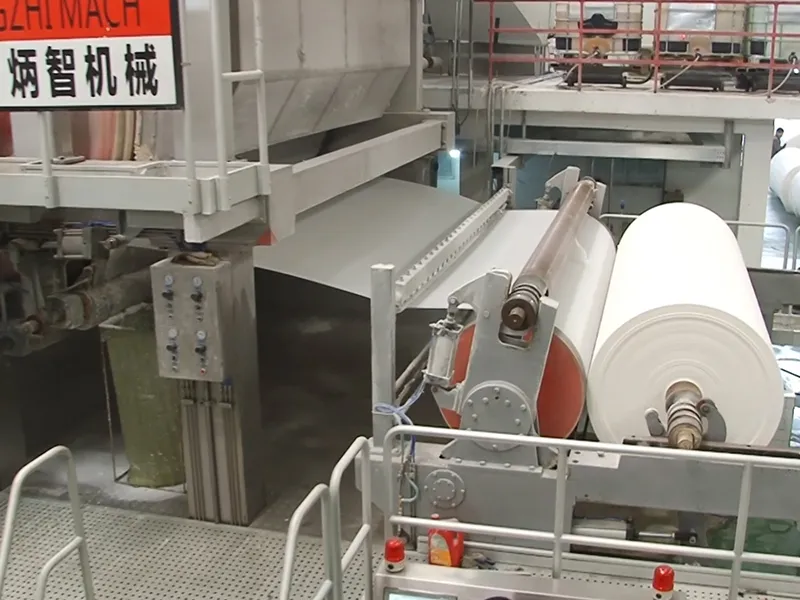

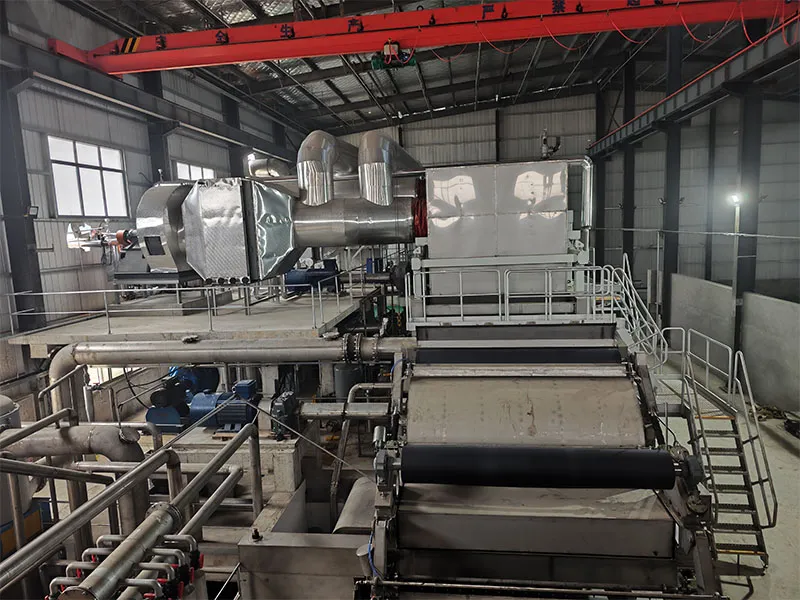

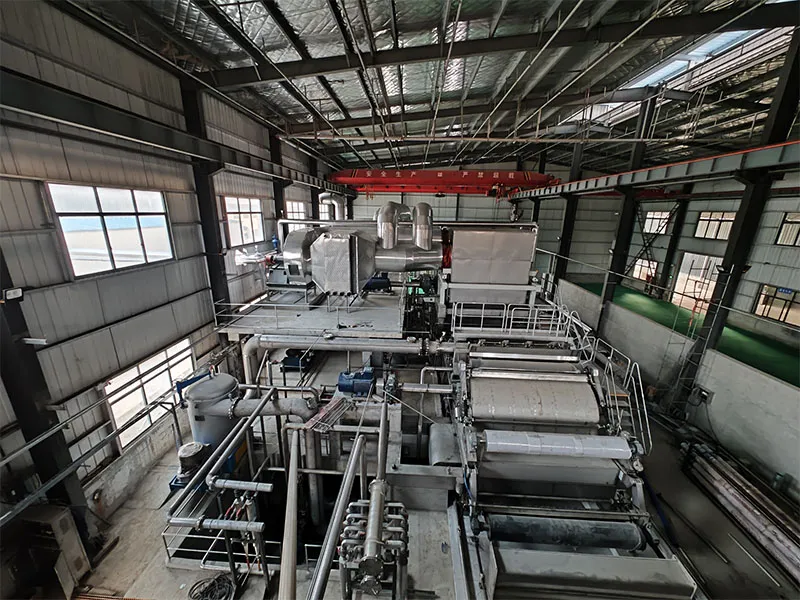

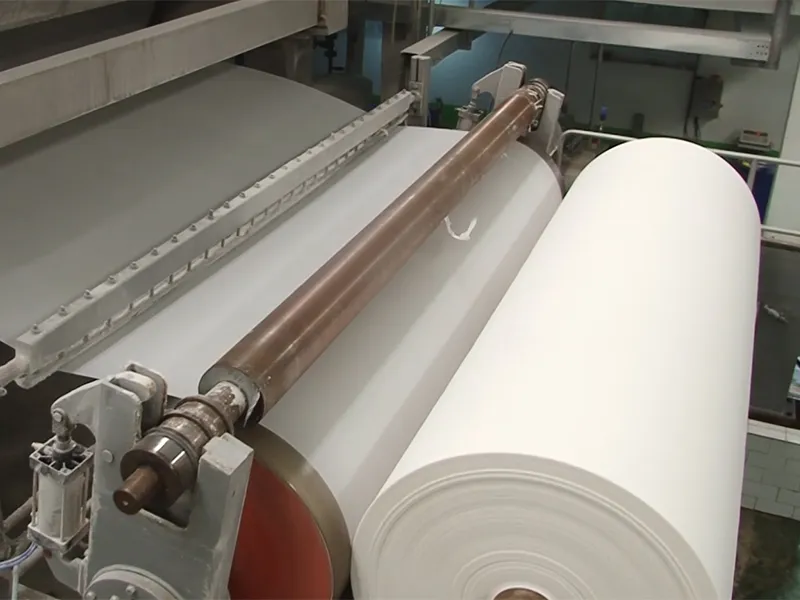

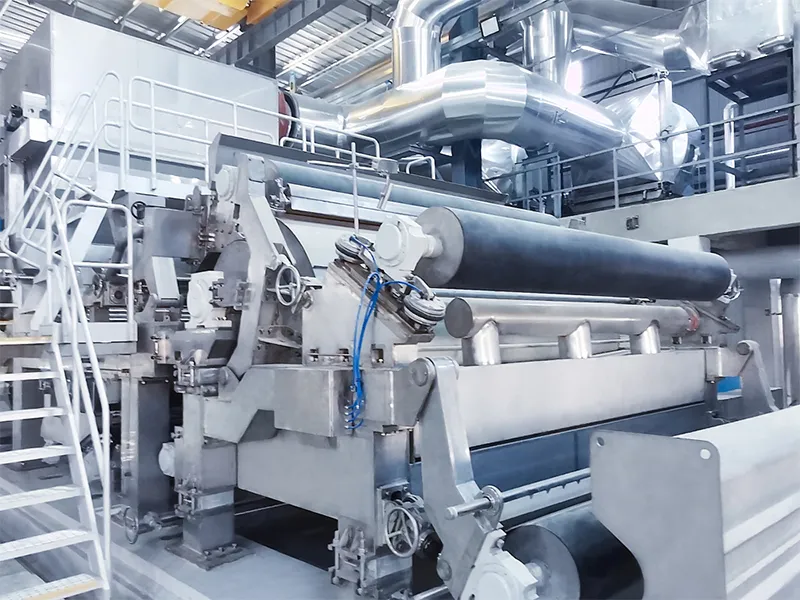

The crescent former tissue machine is a sophisticated piece of equipment, comprising several key components, including hydraulic headbox, former, press felt, Yankee dryer, Yankee hood, and paper winder. What distinguishes the crescent former tissue machine from others in its class is its unique forming roll, which operates without the aid of vacuum suction. Instead, it relies on the centrifugal force generated by the roll itself for natural draining, resulting in rapid and stable dehydration of pulp with lower power consumption compared to other types of paper machines.
| Paper Produced | Facial tissue, napkin paper, toilet paper |
| Raw Materials | Wood pulp, bamboo pulp, bagasse, reed pulp, waste paper pulp, etc. |
| Trimmed Width | 1880-5600mm |
| Basis Weight | 11-25g/m² |
| Production Capacity | 10-110t/d |
| Gas Consumption | 1.9-2.2T (per ton of paper) |
| Energy Consumption | 280-380kW·h (per ton of paper) |
| Water Consumption | 2-4m³ |
| Machine Speed | 400-1800m/min |
- The crescent former tissue machine offers flexible installation space with adjustable dimensions ranging from 14 to 22 meters in length, 11 to 15 meters in width, and 5.5 to 7.9 meters in height.
- Various forming, dewatering, and drying methods are integrated into this tissue making machine, designed meticulously to align with the characteristics of the pulp type, paper type, and geographical area.
- Featuring different materials and forms of dryers and hoods, crescent former tissue machine ensures optimal performance based on the specific evaporation load.
- The paper machine is designed with practicality, simplicity, and ease of operation and management in mind. It is thoughtfully engineered to streamline operations and enhance overall efficiency of tissue production.
This paper making machine is primarily utilized to manufacture common household paper products, including toilet paper, facial tissue and paper towel. It has been engineered to operate at a maximum speed of 1800m/min and its operation does not necessitate the usage of highly specific pulp materials.
Standard Configurations: Former, dryer, paper winder, drive, pneumatic control
Optional Configurations
- Pulping equipment: pulper, refiner, desander, pressure screen, etc.
- Pulping control system: electric cabinet, electrical components, frequency conversion, control system
- Pipeline components in the pulping section: pipes, valves, fittings, etc.
- Paper machine auxiliary machinery: approach flow system, vacuum system, DCS control system, auxiliary electrical control
- Pipeline components in the paper making section: pipes, valves, fittings, etc.
- Post-processing equipment: rewinding machine, packaging machine, paper roll processing equipment, tissue paper processing equipment
- Spare parts: guide rollers, vacuum rolls, paper roll shaft, etc.
Our expert team works together with you according to your specific needs.
-
width 3550mmPapeles Latinos is a South American manufacturer and distributor company of paper for personal and household care.
-
width 2850mmArabest 127 CC is a company located in South Africa which manufactures and develops tissue paper using recycle paper as raw product.
-
width 3580mmThis domestic project was to transform a PM01 Fourdrinier tissue machine, designed for the production of 22-42g/m² hand towels to a higher production yielding machine.
